Scalable energy storage for home and job site
This bundle pairs the Bluetti Apex 300 power station with an expansion battery. Together they provide 5,529.6 Wh of storage, 2,764.8 Wh of which sits in the main unit. The principle is straightforward: plug your equipment into the 230 V sockets, recharge from the mains or from solar panels, and you have an independent supply for hours of work or comfort.
Who is it for?
Households can use it as a backup for a fridge, an internet router or lighting during an outage, or as extra supply for a holiday home. Professionals will tend to use it for a mobile workshop, a market stall or a site without a grid connection, since the four sockets can feed tools, computers and light equipment at the same time.
Typical uses
- Backup power for a small technical room.

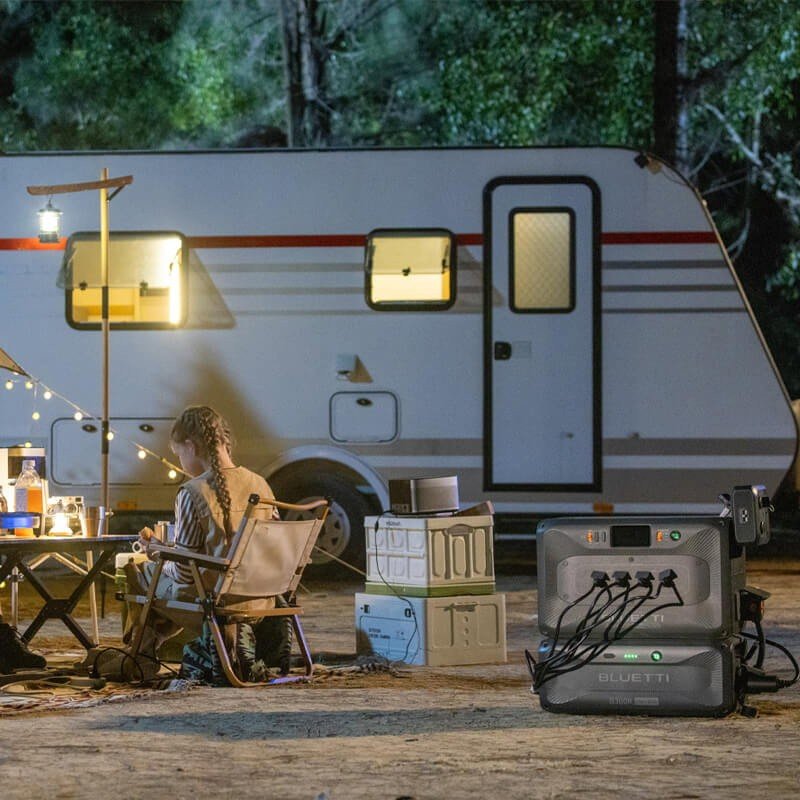

- Supplementary electricity for a motorhome or a garden cabin.
- Autonomy for an outdoor event.
Build and connections

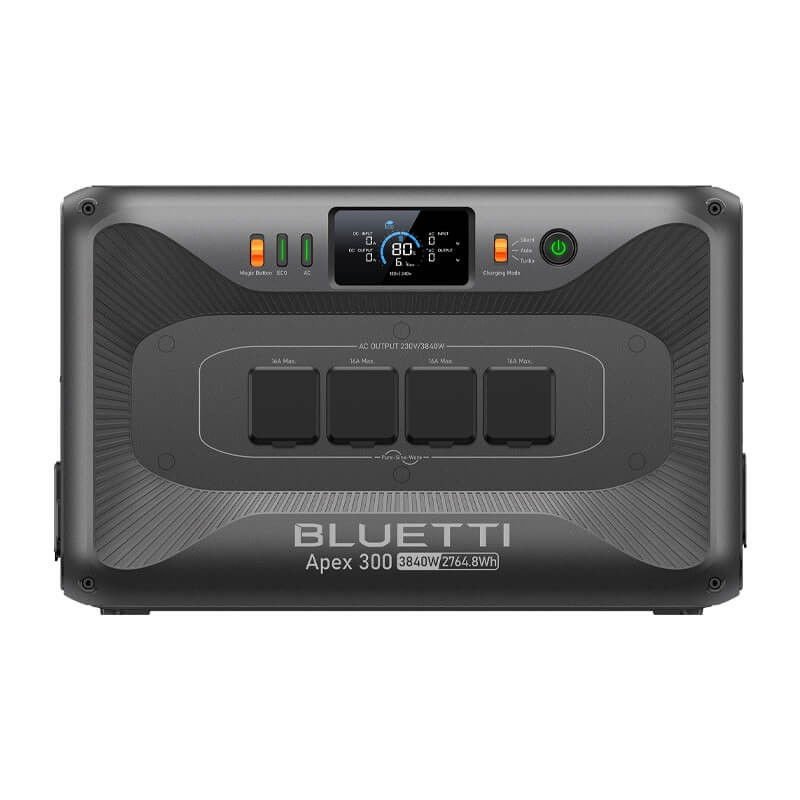

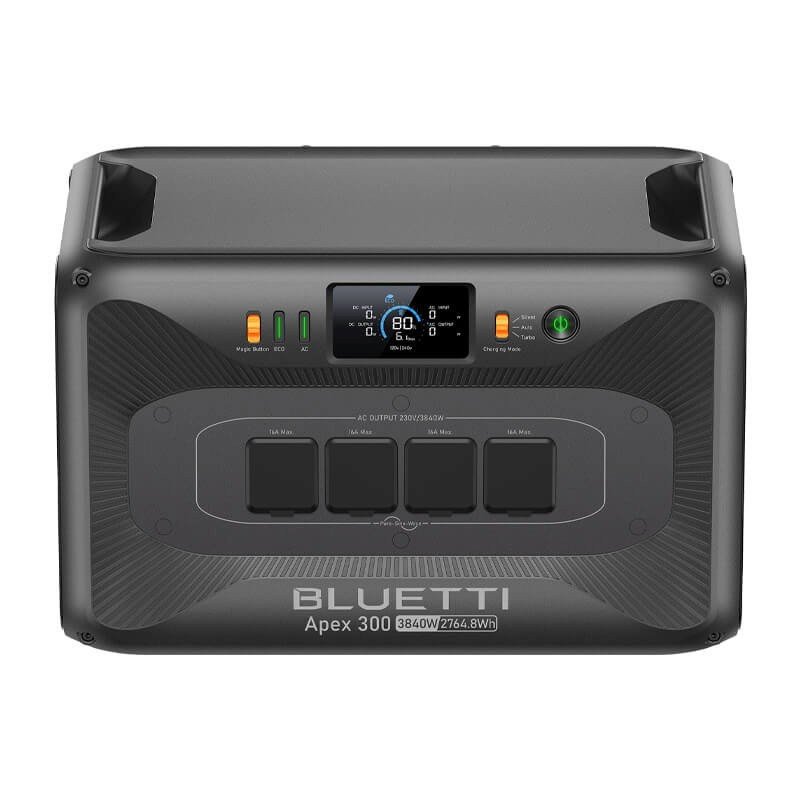

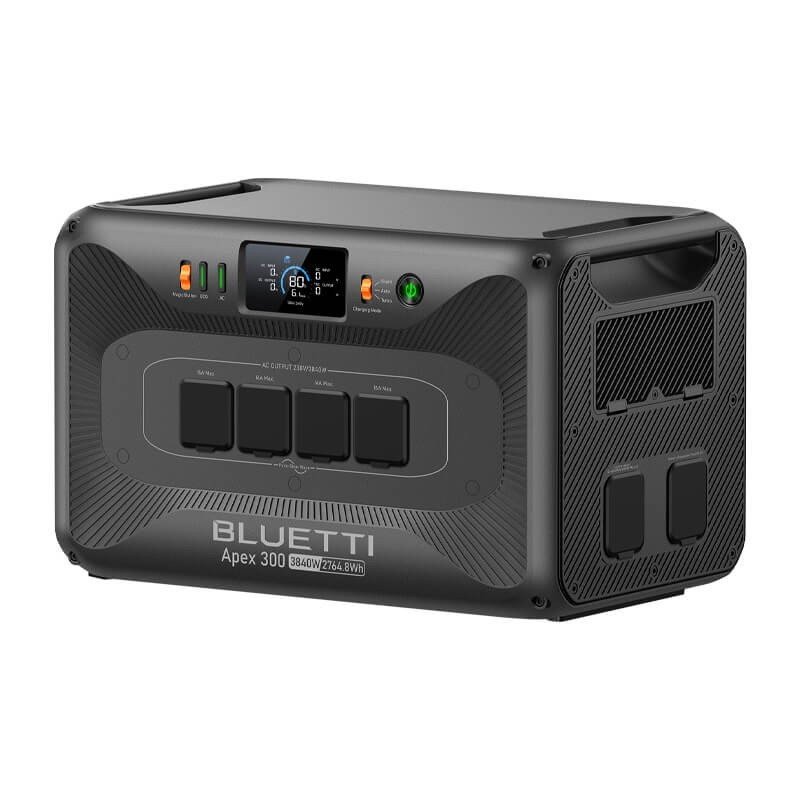

The cells are LiFePO4. The main unit measures 525 × 327 × 320 mm and weighs 38 kg, so it is easier to move with two people than alone. On the output side, four EU Schuko sockets deliver 230 V, 50/60 Hz, up to 3,840 W in total and 16.7 A. The DC input offers two XT60 solar ports, each up to 1,200 W, with a 12 V to 60 V range and 20 A maximum. WiFi and Bluetooth allow remote monitoring.
Setting it up
Place the station on a flat, stable, dry surface with free space around it for airflow. Connect the expansion battery as described in the manufacturer’s manual and follow the connection sequence it gives. For panels, check that the voltage and current of your array stay within the stated input range. Any link to a home distribution board must be carried out by a qualified installer.
What sets this model apart
- Combined capacity of 5,529.6 Wh in a single bundle.
- Up to 6 compatible modules can be added per main unit.
- Two separate solar inputs, handy for two panel orientations.
- 3,840 W total output for demanding appliances.
Technical specifications
- Battery type: LiFePO4
- Main unit capacity: 2,764.8 Wh
- Bundle capacity: 5,529.6 Wh
- 230 V output: 4 Schuko sockets, 3,840 W max. in total, 16.7 A max., 50/60 Hz
- Solar input: 2 XT60 ports, 2 × 1,200 W max., 12 V to 60 V, 20 A max.
- Connectivity: WiFi and Bluetooth
- Main unit dimensions: 525 × 327 × 320 mm
- Main unit weight: 38 kg
Safety
Never exceed the total power rating, and only use cables that are in good condition and correctly sized. Keep the unit away from water, heat sources and flammable material. Do not cover the ventilation openings, and do not try to open the housing.
Care and storage
Wipe the housing with a dry cloth. For a long shutdown, keep the set in a mild, dry place at a partial charge and check it now and then following the manual’s advice.
