The role of these corners in an assembly

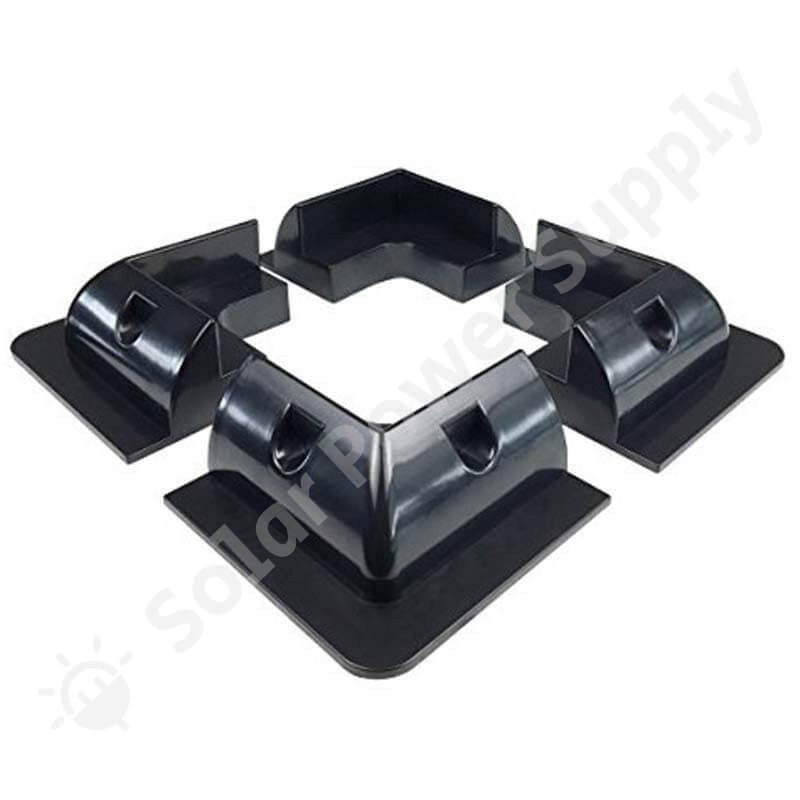

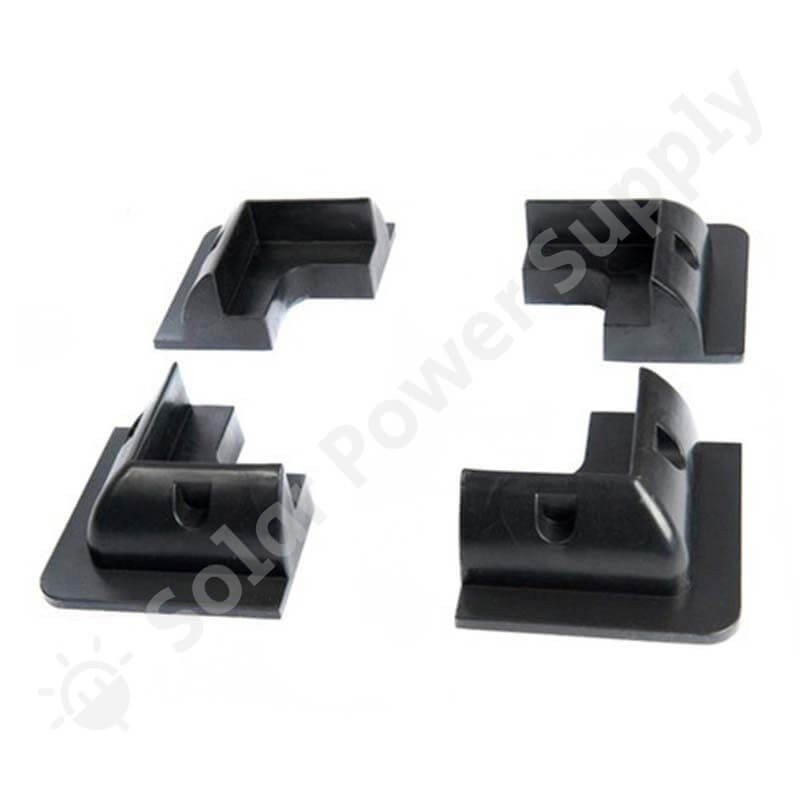

A solar panel is a flat object that is fairly sensitive to knocks, especially at its corners. These black ABS plastic parts sit at the corners of the frame: they help hold it, separate it from the support and cushion small contacts. They are not a complete support but an addition that contributes to the overall hold.
What everyday use looks like
They are slotted or fixed onto the module’s corners, and the whole unit then goes onto a supporting structure. Their black colour stays discreet on a panel with a dark frame, which matters to anyone who cares about the look of their roof or terrace.
For whom, and for what
- A homeowner mounting a supplementary panel on a garden shed or trailer;
- an installer preparing modules for transport to a site;
- a DIY enthusiast building a made-to-measure fixing frame.
What the sheet tells us
Only the material is specified: ABS plastic, in black. No dimension, accepted frame thickness, number of pieces per pack or mechanical strength appears in the data. Before buying, measure your panel’s frame and compare it with the manufacturer’s information.
Fitting the corners properly
First clean the frame corners: dust and grease reduce grip. Offer up each corner without forcing it, check that it follows the profile, then secure it as the instructions describe. Make sure all four pieces sit at the same height before placing the panel on its support. Any electrical connection remains a job for a qualified installer.
How many pieces to plan for
A rectangular panel has four corners, so four corner pieces are normally needed per module. The exact number supplied in a pack is not stated here, so check it before planning several panels. It is also sensible to keep one or two spares, because a cracked piece found mid-installation can stall the whole job on a weekend afternoon.
What speaks for this type of part
- ABS plastic, light to handle;
- black finish that matches many frames;
- protection of corners from direct contact with a rigid support.
Specifications
- Type: corner fixings for a solar panel;
- Material: plastic (ABS);
- Colour: black.
Precautions
Plastic copes less well than steel with concentrated forces. Do not rely on these corners to carry the full weight of the panel on their own unless the instructions say so. Avoid tightening them to the point of cracking, and replace any part that is split or deformed. Do not expose the assembly to intense heat sources not foreseen by the manufacturer.
Care and keeping
Wipe with a damp cloth and a little mild soap; solvents can attack plastic. Inspect the corners when the seasons change, looking for cracks, play or fading. Keep spare parts away from light and heat.
