A compact storage column for the home

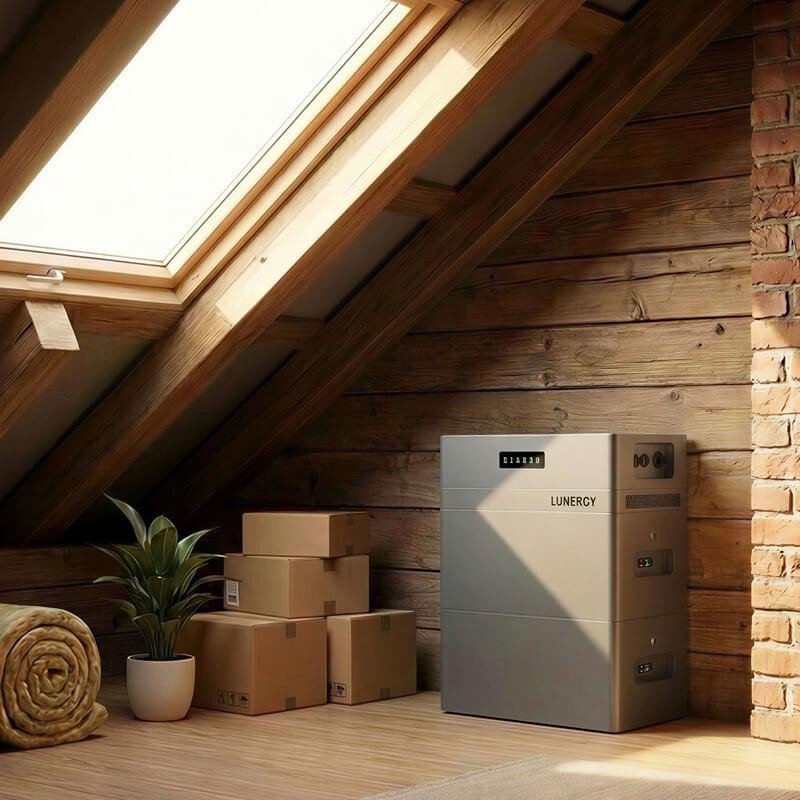

Lunergy’s Hub 2400 AC acts as the brain and interface: it drives three batteries stacked above it to form a column whose combined capacity reaches 15,66 kWh. The whole assembly takes 530 × 360 × 658 mm, which makes it easier to place than a series of scattered modules. The 2.4 kW figure that goes with the model name refers to the power of the system; check the manual for its exact use.
Use cases
In a household
A cellar, a garage or a utility room is often enough to host a column with this footprint. It can accompany a solar panel installation or keep electricity on hand for the evening. The Wi-Fi connection lets you follow it remotely.
In a professional activity
A practice, a design office or a small shop gets a discreet, quiet reserve close to the distribution board.
Size and weight
The main unit measures 530 x 360 x 156mm and weighs 12.1 kg. It is the lightest part of the system: the batteries, being heavier, are best handled by two people. The switching time given is 10 ms, a figure to read alongside the manufacturer’s documentation if you are thinking of a backup function. The noise level stays below 45 dB.
Choosing the right spot
A vertical column is easy to tuck into a corner, but it must stay reachable: keep a clear passage in front so you can check the unit and work on the connections. A temperate room suits it better than a shelter exposed to wide temperature swings, since no operating range is given in the specifications supplied. Think too about the route cables will take between the column and the distribution board.
How to set it up
- Measure the spot: the assembly is 658 mm tall, so leave room around it for ventilation and cable access.
- Place the column on a flat, dry floor, away from water splashes, since no protection rating is provided.
- Stack the batteries on the main unit as described in the manual.
- Entrust the connection to the household network to a qualified installer.
- Pair the device with your Wi-Fi network.
Strengths
- Column format, space-saving relative to its 15,66 kWh capacity.
- Discreet operation, under 45 dB.
- Remote monitoring thanks to Wi-Fi.
Technical specifications
- Brand: Lunergy
- Wifi-function: Wi-Fi
- Dimensions: 530 x 360 x 156mm
- Weight: 12.1 kg
- Switching time: 10 ms
- Noise: < 45 dB
- Bundle — Capacity: 15,66 kWh
- Bundle — Dimensions: 530 × 360 × 658 mm
Safety
Do not install the column in a damp place or near a heat source. Do not cover the casing, do not put heavy objects on top and never use damaged cables. Stay within the limits given in the manufacturer’s manual.
Care and storage
Dust the sides with a dry cloth, without liquid products. If the device is to stay switched off for several months, leave the batteries partly charged and keep them away from moisture.
