Why extend a panel’s cable run

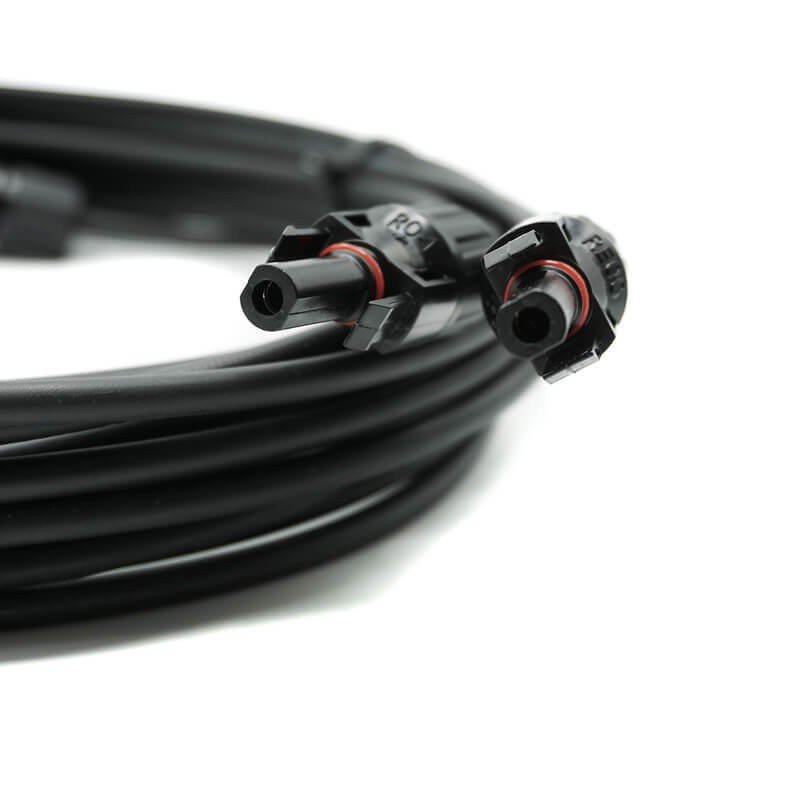

Photovoltaic panels are rarely installed exactly where the equipment that collects their energy sits. Between a carport roof and a charge controller placed in a shed, or between a module resting on the grass and a storage unit kept in the shade, a few metres are often missing. This MC4 extension lead measures 10 m and bridges that gap without improvisation, by prolonging the panel’s own cable.
Who uses it and when
For a home user, it typically goes with a module mounted on a motorhome roof or a garden shelter, so the cable can be brought inside. For a professional, such as a plumber moving into solar, a small-plant installer or a technician working on an isolated site, it serves as a repair part or a standard item in the tool case.
Typical situations
- Moving a panel out of a shaded area to orient it better.
- Extending an existing run when the cable supplied with the module is too short.
- Joining several lengths to reach a technical room.
How the cable is built
According to the data provided, the conductor has a cross-section of 6mm² and the material listed is plastic. The overall length is 10 m. Nothing is stated about maximum voltage, permitted current or resistance to ultraviolet light: confirm these points in the manufacturer’s manual before any permanent outdoor use.
Strengths of this model
A 6mm² cross-section is more generous than that of many small cables, which helps contain heating and voltage drop as distance grows. The 10 m length gives a comfortable margin for going around a wall or a roof edge without stretching the cable taut. Finally, the extension format means nothing has to be cut or crimped.
Setting it up
Disconnect the panel from any device, then cover it or turn it away from the sun if possible, since it produces current whenever light reaches it. Push the connectors together until they click, without forcing or twisting them. Secure the cable with suitable clips every few tens of centimetres, without pinching it, and leave a slight loop in front of each connector so water drips off instead of creeping in. Connecting to a fixed installation is a job for a qualified installer.
Technical specifications
- Length: 10 m
- Conductor cross-section: 6mm²
- Material: plastic
- Type: solar cable extension, MC4 connectors
Safety
Never unplug an MC4 connector while it is under load: an electric arc may form. Check that the voltage of your panels, added up if you wire them in series, stays within the limits stated by the maker of the cable and the device. Protect the sheath from rubbing against tiles or edges, avoid laying it in a puddle and keep it away from walkways to prevent trips.
Care and storage
Inspect the sheath and connectors twice a year: cracks, strong discolouration or play in the fit call for replacement. Simply clean with clear water and let it dry. For storage, coil the cable in wide loops, away from any heat source, and protect the ends from dust with their caps if the kit includes them.
