A backup solution able to take over very quickly

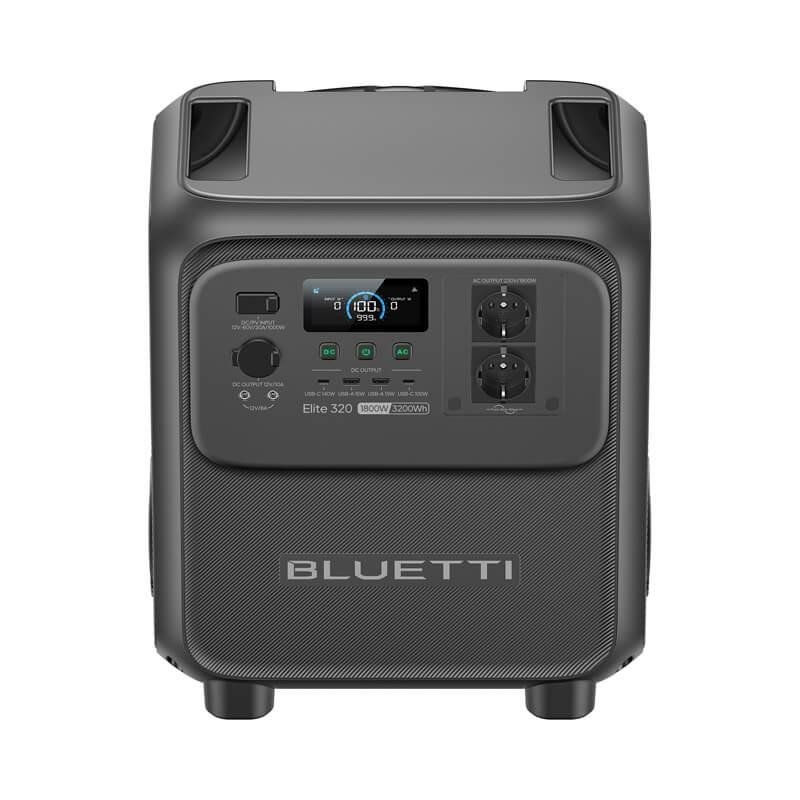

The Bluetti Elite 320 is built around a 3200 Wh battery and a feature that matters for sensitive equipment: 10ms inverter switchover. Placed between a wall socket and an appliance, it can step in when the mains disappears, which reduces the risk of a computer, a home server or a piece of network gear restarting.
Getting started means connecting the station to the mains, plugging the loads into its two Schuko sockets or ports, then setting up and monitoring everything over Wifi or Bluetooth.
Where to put it, and what for
At home
In a home office it protects the workstation and the internet connection. In a kitchen or cellar it can support a freezer during an incident. Always check the starting power of motors, since it may exceed the figure on the label.
In business and outdoors
A practice, a shop or a workshop can turn it into a backup supply for a till, a computer or light tooling. Outdoors it also serves as a source for an event or a job site, with 1800 W continuous and 3600 W peak.
Construction and ports
The battery is LiFePO4. On the output side you get 2 x AC 230 V (EU Schuko), 2 x USB-A 30W, one 100W USB-C PD port, one 140W port, a 1 x 12V/10A DC output and 2 x DC5521 at 12V/5A per port, 8A. The case measures 403 × 284 × 460 mm and weighs 34 kg: it is moved over short distances rather than carried by hand.
Charging the station
- From the mains: AC input of 1440W, about 2h 30min.
- From solar: input of 1000W Max., 12V-60V, 20A Max.
Check the voltage of your panels before connecting and refer to the manufacturer’s manual.
Key points
- 10ms inverter switchover for appliances that cope badly with outages.
- 3200 Wh capacity paired with 1800 W continuous output.
- Quick mains charging for its size and a generous solar input.
Technical characteristics
- Battery type: LiFePO4
- Capacity: 3200 Wh
- 230 V output: 2 x AC (EU Schuko), 10ms UPS switchover, 1800 W continuous, 3600 W peak
- USB output: 2 x USB-A 30W, 1 x USB-C PD 100W, 1 x USB-C PD 140W
- DC output: 1 x 12V/10A, 2 x DC5521 12V/5A (per port), 8A
- DC input: 1000W Max.
- Solar input: 1000W Max., 12V-60V, 20A Max.
- Mains recharge: AC input 1440W, ca. 2h 30min
- Connectivity: Bluetooth and Wifi
- Dimensions: 403 × 284 × 460 mm
- Weight: 34 kg
Precautions
Install the station in a ventilated place on a level floor, without covering it. At this power level, connecting cables must be suited to the current. Never open the case, avoid water splashes, and leave any connection to the home’s electrical network to a qualified electrician.
Maintenance and storage
A plain dry cloth is enough for the outside. If the station stays on standby for a long time, check its charge level now and then and keep it in a dry, mild room.
