The most generous format of this series

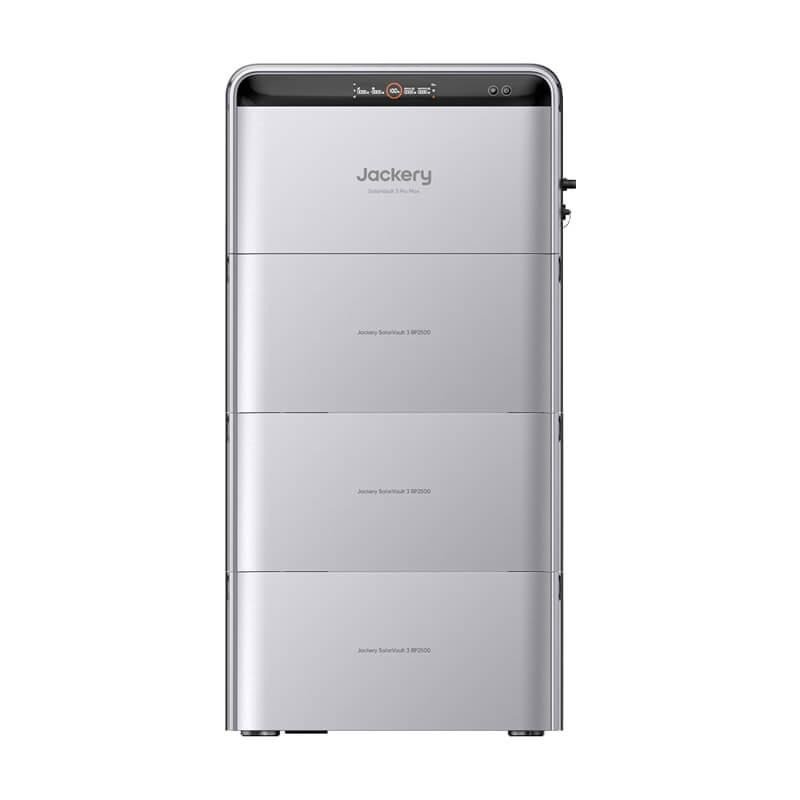

In this configuration the main unit of the SolarVault 3 Pro Max receives three BP2500 modules and reaches 10.08 kWh. The 4000W photovoltaic input makes it a natural candidate for a household that already has a well-stocked roof of panels and wants to keep the midday output for the evening and the night.
Who will find it useful?
A large family, a house with a workshop or a rural guesthouse may have needs that justify such a reserve. A craftsperson working in an isolated building might also look for a backup source here. Note, however, that the real running time depends on the power of your appliances: take a consumption reading before any final choice, and compare it with the 10.08 kWh of the bundle rather than assuming the figure covers every situation.
What the data sheet contains
Battery protection elements
The chosen technology is LiFePO4. It comes with multi-layer BMS protection, terminal temperature detection and aerosol fire suppression, three mentions supplied by the manufacturer.
Dimensions and weight

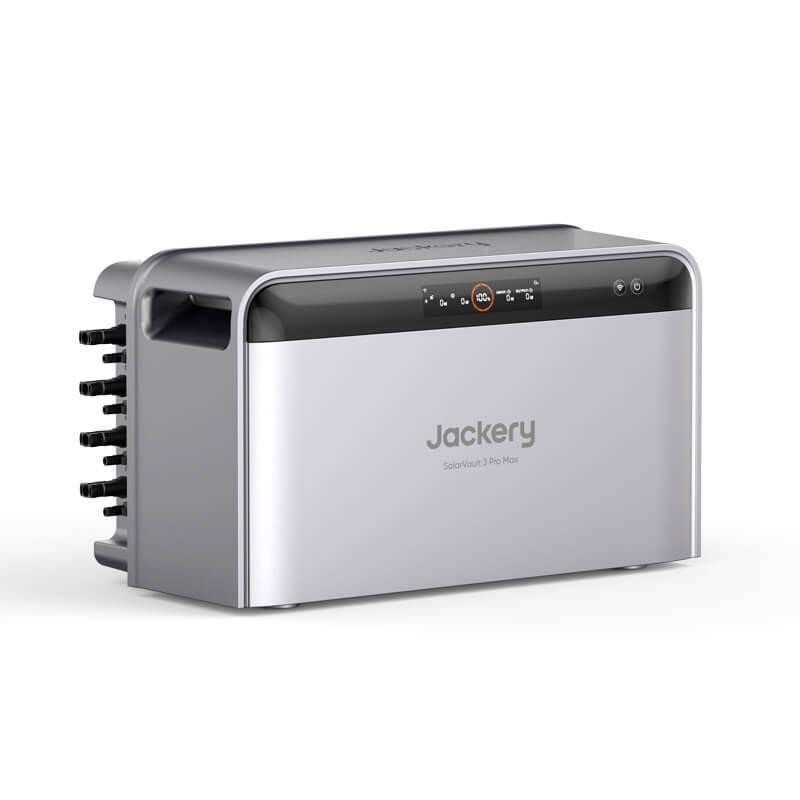

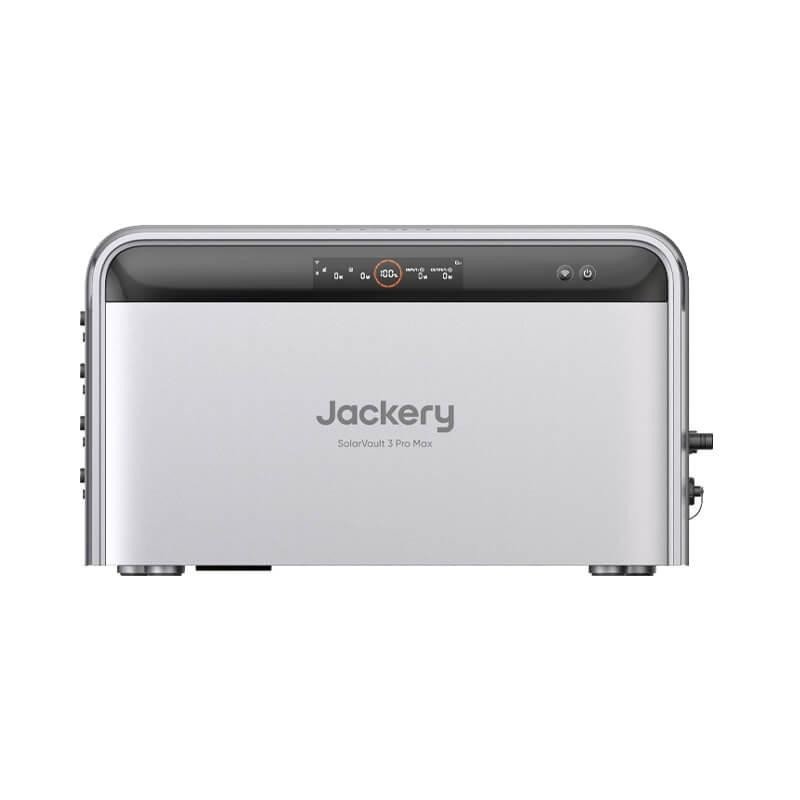

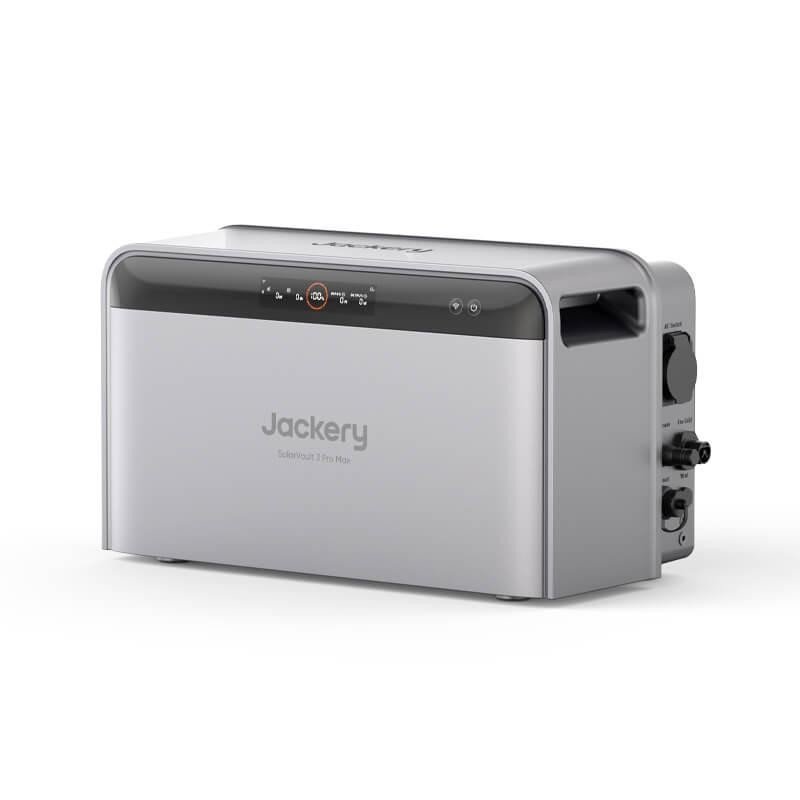

The main unit measures 485 x 248 x 282 mm and weighs 26.5 kg, while the bundle reaches 90 kg. Such a weight is spread over several elements, which eases transport, but the final location must remain solid and level. Think about how you will carry the modules in, and whether the route to the chosen spot, such as a staircase or a narrow door, allows it safely.
Checklist before installation
- Pick a dry spot, away from any heat source and easy to reach.
- Verify that the planned panels respect the input limits stated by Jackery.
- Anticipate the cable length between the solar field and the unit.
- Provide a 230 V outlet nearby for the plug-and-play mode.
- Call in a qualified electrician for the connection to the home network.
Advantages of the model
- Capacity of 10.08 kWh in this configuration, with five possible expansion slots for the main unit.
- Operation from -20°C to +55°C.
- Noise level stated as ＜30.
Technical characteristics
- Brand: Jackery
- Battery type: LiFePO4 with multi-layer BMS protection, terminal temperature detection and aerosol fire suppression
- Battery capacity in Wh: 2520 Wh expandable with 5 additional batteries
- PV input: 4000W
- Bundle capacity: 10.08 kWh
- Bundle weight: 90 kg
- Wifi function: Wifi + Bluetooth + Ethernet
- Temperature range: -20°C – +55°C
- Weather protection: IP65
- Dimensions: 485 x 248 x 282 mm
- Main unit weight: 26.5 kg
- Connection method: plug and play (via a 230 V outlet)
- Noise level: ＜30
Good safety and care practice
Do not handle panel connectors while they are lit and under load. Keep children and pets away from the device, keep its grilles and faces clear and spill no liquid on it. Wiping it dry is enough for routine care. If you plan to shut it down for a long time, read the manufacturer’s manual before putting it away, and check the compatibility of each element you add, including cables and any panel you connect later.
