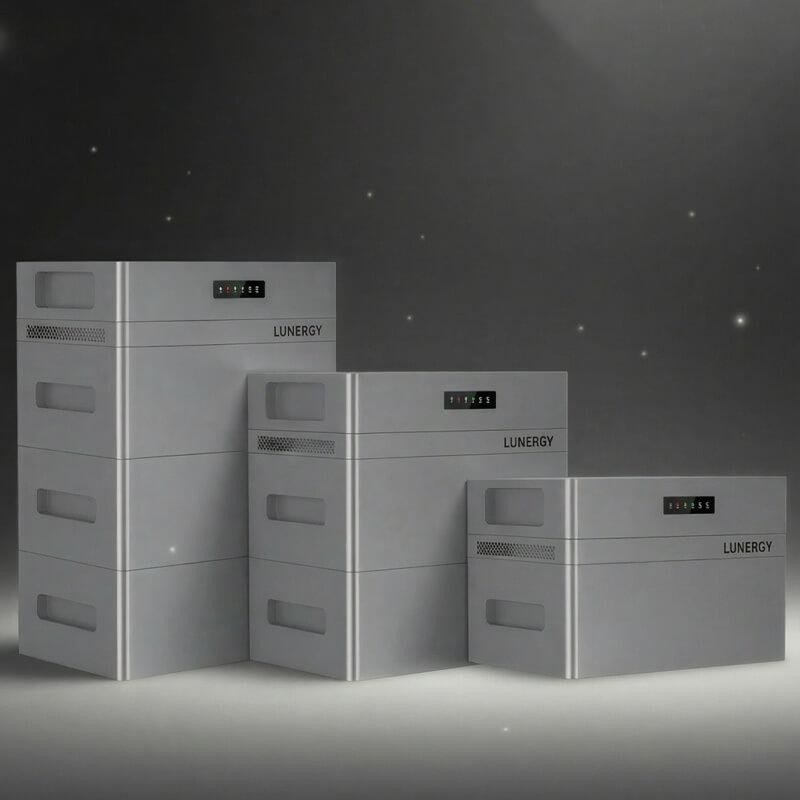

A central module and two stacked batteries

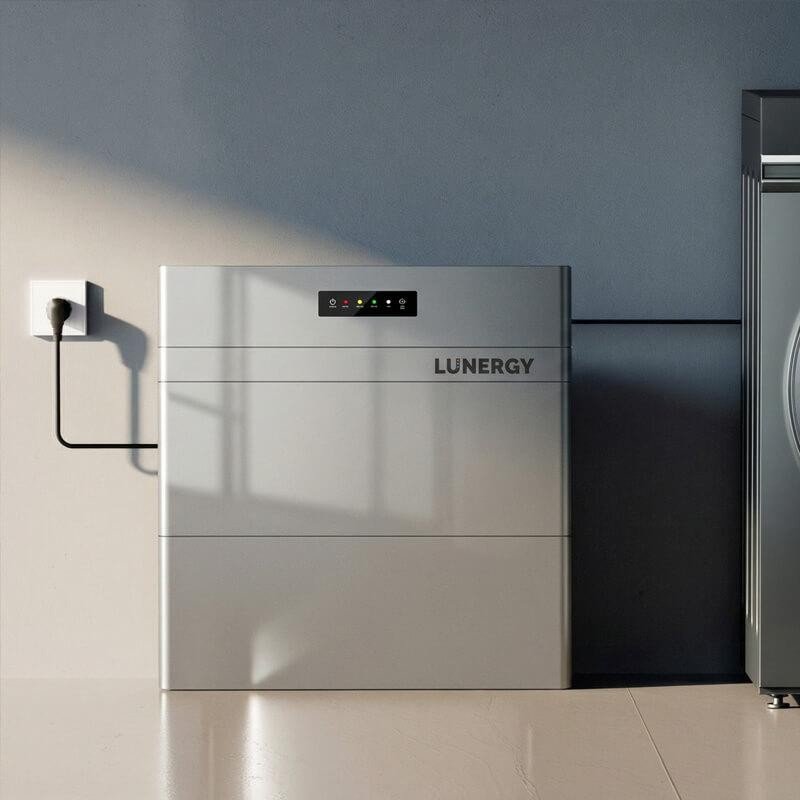

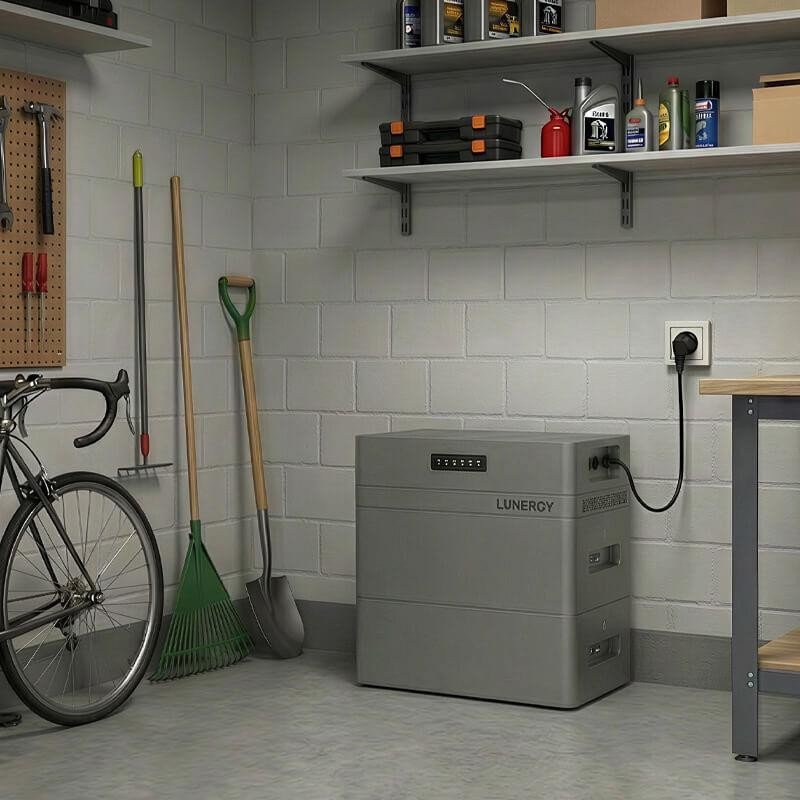

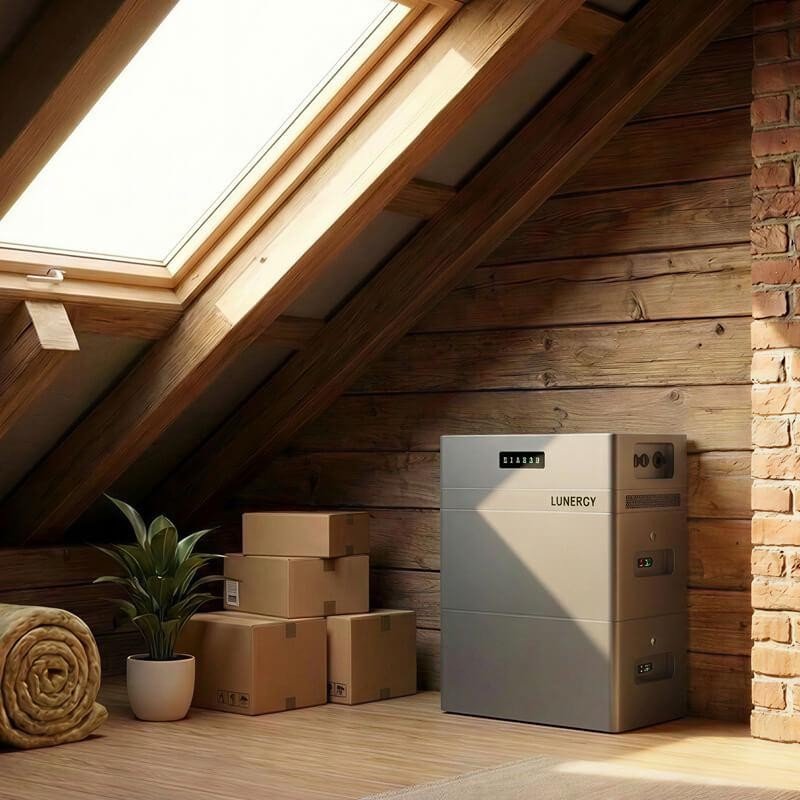

The Lunergy Hub 2400 AC is the control element of this system. Here it comes with two BP5200 batteries to form a 10.44 kWh set. Once assembled, the whole occupies 530 × 360 × 658 mm, which makes it a fairly discreet block to place in a garage, a utility room or a technical room. The product name gives 2.4 kW of power.
Why use such equipment?
A storage system sets aside part of the available electricity so that it can be released at the right moment. Depending on the chosen configuration, it can help a household make better use of its solar production or keep a reserve for certain appliances. The Hub relies on a Wi-Fi link for communication.
For a home
It is meant for people who want to equip an existing dwelling without upsetting the installation. The exact connection arrangements should be discussed with the manual and an electrician.
For a professional activity
A craftsperson or a neighborhood shop may consider this kind of block for part of their loads, after studying the real need.
What the figures show
The main unit measures 530 x 360 x 156mm and weighs 12.1 kg, light enough for its role. Its switching time is stated as 10 ms, and its noise level stays below 45 dB, an interesting point if the room is close to living space. The manufacturer gives no protection rating or temperature range here, so install it indoors, in the dry, unless the manual says otherwise.
Preparing the installation
- Choose a wall or floor able to carry the weight of the whole.
- Leave space around the elements for air to circulate.
- Have a qualified installer carry out the connection to the home electrical network.
- Connect the Hub to your Wi-Fi network following the manufacturer’s instructions.
Points to remember
- 10.44 kWh set made of two batteries and one module.
- Low height of the main unit: 156mm.
- Switching in 10 ms.
Technical characteristics
- Set capacity: 10.44 kWh
- Main unit dimensions: 530 x 360 x 156mm
- Main unit weight: 12.1 kg
- Switching time: 10 ms
- Noise: < 45 dB
- Wifi-function: Wi-Fi
- Set dimensions: 530 × 360 × 658 mm
Safety
Do not cover the modules, keep them away from water and heat sources, and make sure the cables are suitable and in good condition. Work on the electrical panel is reserved for qualified people. If you are unsure about compatibility with your installation, consult the manufacturer’s manual.
Care and storage
A dry cloth is enough to remove dust. Check from time to time that nothing blocks the area around the device. If you need to dismantle it, keep the batteries in a dry, cool place, following the manufacturer’s recommendations.
